1. Pedal Overview & Components
Your kit includes two foot pedals, each with a dedicated role:
- Hi-Hat Pedal (Left, marked "L"): Controls hi-hat sounds.
- Bass Drum Pedal (Right, marked "R"): Controls bass drum sounds.

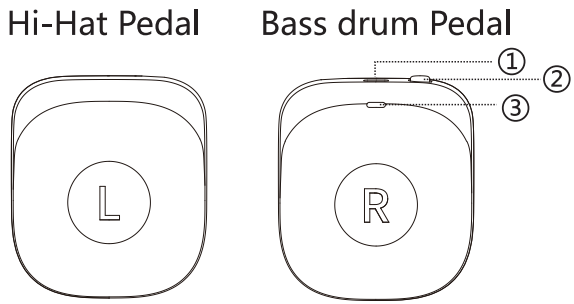

2. Key Parts (Right Pedal Reference)
No. |
Component |
Function |
① |
Micro Charging Port |
Charge the built-in battery. |
② |
Power Button |
Turns the pedal on/off and triggers Bluetooth pairing to the adapter. |
③ |
Light Indicator |
Only on the right pedal — displays power, Bluetooth, and battery status. |
3. Basic Operations
Power On & Off
- Power On: Short-press the power button once. The pedal will automatically enter Bluetooth pairing with the adapter.
- Power Off: Long-press the power button for 3 seconds.
- Auto Power-Off: The pedal will automatically shut down if there is no Bluetooth connection is detected for 5 minutes.
4. Right Pedal Light Indicator Guide
Use this table to quickly identify the right pedal’s LED status:
Light Behavior |
Status Meaning |
Flashing |
Bluetooth is ready to connect (pairing mode) |
Changes from flashing to steady |
Bluetooth successfully connected |
Changes from flashing to off |
Low battery (please charge immediately) |
Unsteady light |
Currently charging |
Steady green light |
Charging completed (fully charged) |
5. Core Features & Functions
5.1. Standard Play Mode
The foot pedals let you replicate real drum kit dynamics:
- Use your left foot on the Hi-Hat Pedal to play hi-hat sounds.
- Use your right foot on the Bass Drum Pedal to trigger bass drum hits. This mode works seamlessly with the default setup, no extra configuration needed.
5.2. Double Bass Mode
You can start by:
- Pressing and holding both the volume+ and volume- buttons on the Adapter for about 3 seconds.
- Release the buttons once the mode activates.
- Then playing double bass mode.
6. Frequently Asked Questions
Q1: Why does my pedal turn off automatically?
- The pedal shuts down after 5 minutes of no Bluetooth connection. Short press the power button to turn it back on.
Q2: Why is there no light on my left (Hi-Hat) pedal?
- Only the right (Bass Drum) pedal has an indicator light.
Q3: How do I know if my pedal is charging correctly?
- Charging: The right pedal’s light will flicker.
- Fully Charged: The light will stay a steady green.
Q4: My pedal won’t connect to Bluetooth. What should I do?
- Ensure the pedal is powered on (flashing light = pairing mode).
- If the light is off, the pedal may shut down after 5 minutes if there is no Bluetooth connection. Short press the power button to restart it.
Want to know more?
▶ Video guides:
👥 Connect with other users:
🌐 Official social media channels:
For additional assistance, please refer to the included manual or contact AeroBand customer support at support@aeroband.net.
