How do I connect my AeroBand instrument to a DAW like Cubase, Logic, or FL Studio?

Hanan
Updated

1. What is DAW?

A DAW (Digital Audio Workstation) is music production software used for recording, editing, and creating music tracks.

2. Connection Method

Connect your device to the computer using the Type-C Cable provided with the guitar.

3. Software Setup

For optimal performance with your AeroBand Guitar, follow these setup steps for popular DAWs:

  • Most common DAWs (including Logic Pro, Cubase, and FL Studio) will automatically detect MIDI devices.
  • If automatic detection fails, manual configuration may be required.

Note: Setup instructions may vary slightly depending on your DAW version and operating system. For detailed, DAW-specific guidance, please refer to our complete setup guide.



Cubase

Demonstration version: (Tested on Cubase 12 Pro Demo Version).

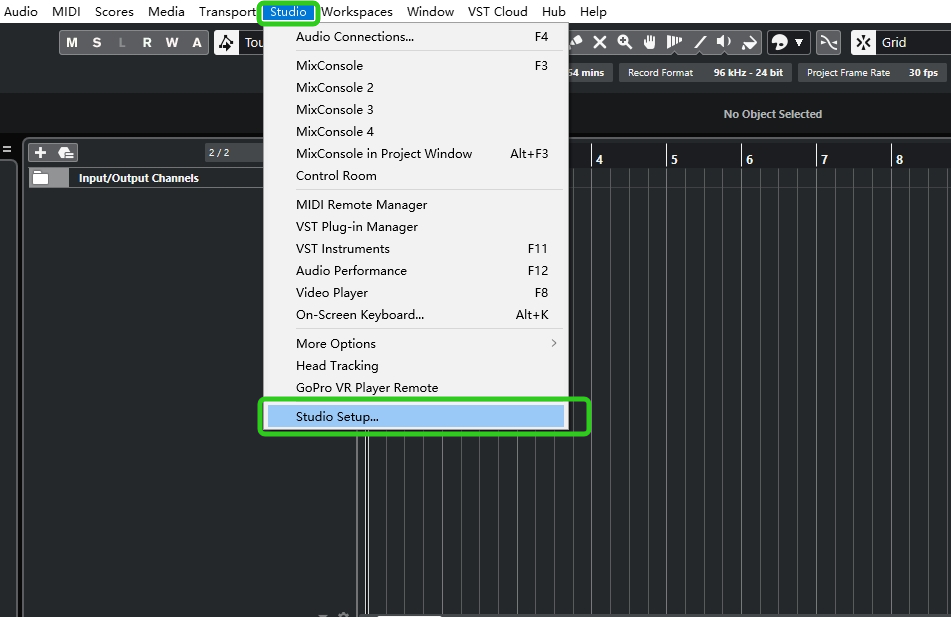

  • After opening Cubase, click "Studio" > "Studio Setup".

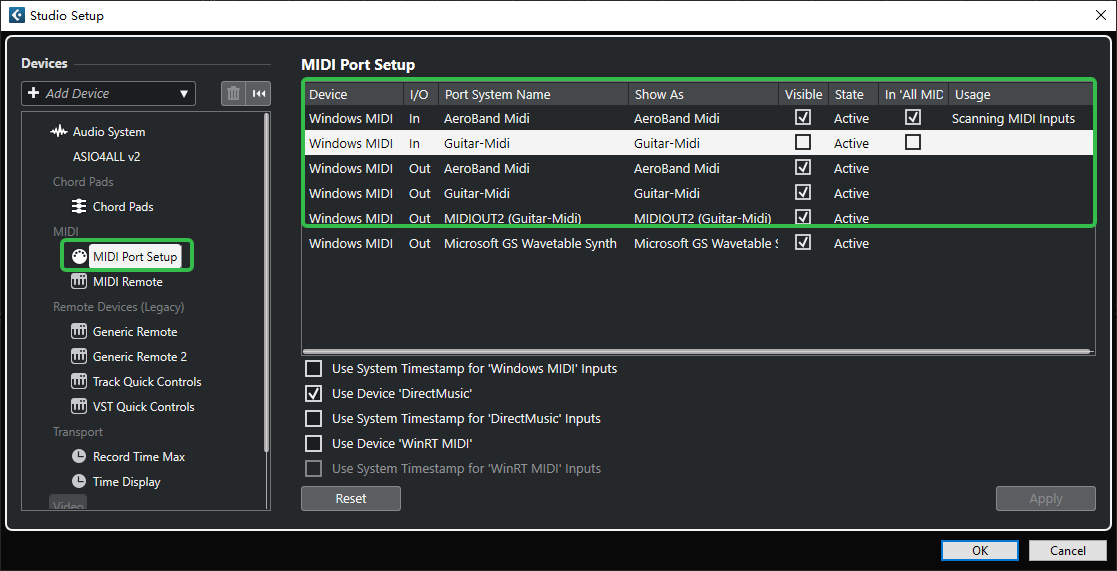

  • Click "MIDI Port Setup", ensure there are 2 MIDI inputs and 3 MIDI outputs from the AeroBand Guitar.
  • Find the entry labeled "Guitar-MIDI In", then uncheck the box next to 'In All MIDI Inputs'.

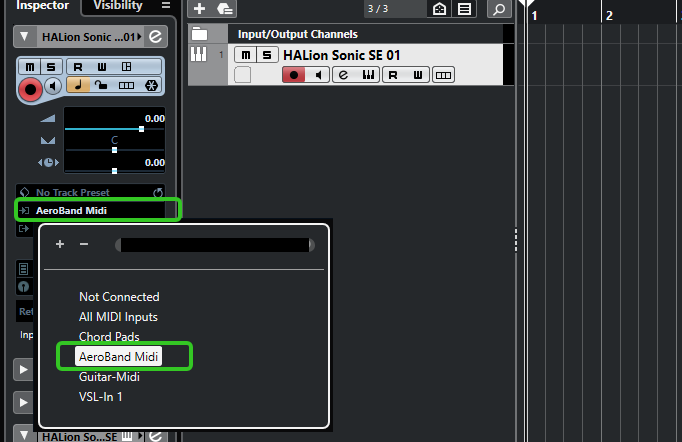

  • Creating an Instrument Track: Add a new Instrument Track in Cubase, and select "AeroBand Midi" from the MIDI input options. If you want to use MIDI pedals or a controller with AeroBand AG guitars, please choose "All MIDI inputs".
  • After completing the setup, you can begin creating music with your AeroBand Guitar.

Logic

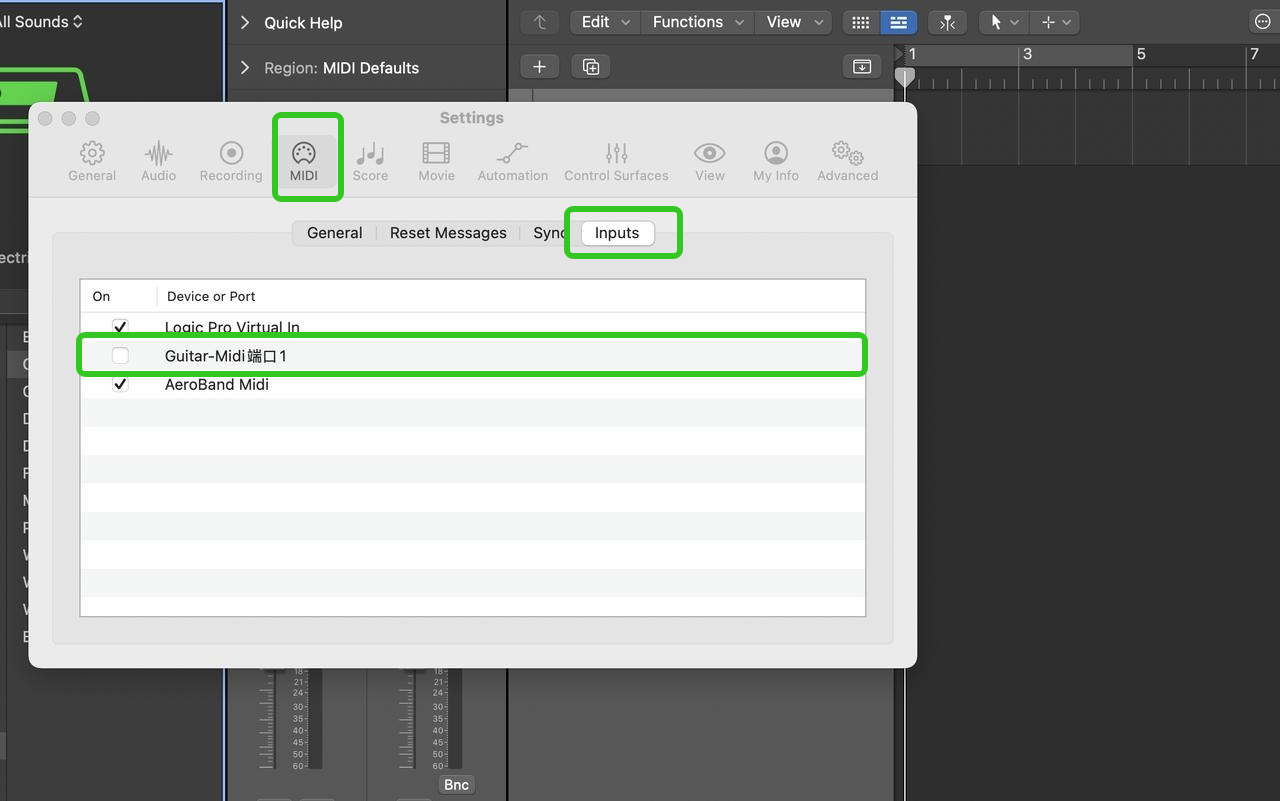

  • The operation in Logic is identical to Cubase: Go to "Settings" > "MIDI" > "Input".
  • Deselect the "Guitar-Midi" checkbox.

FL Studio

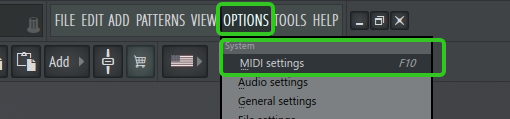

  • Open FL Studio and navigate to: "Options" > "MIDI settings".
fl 1.png

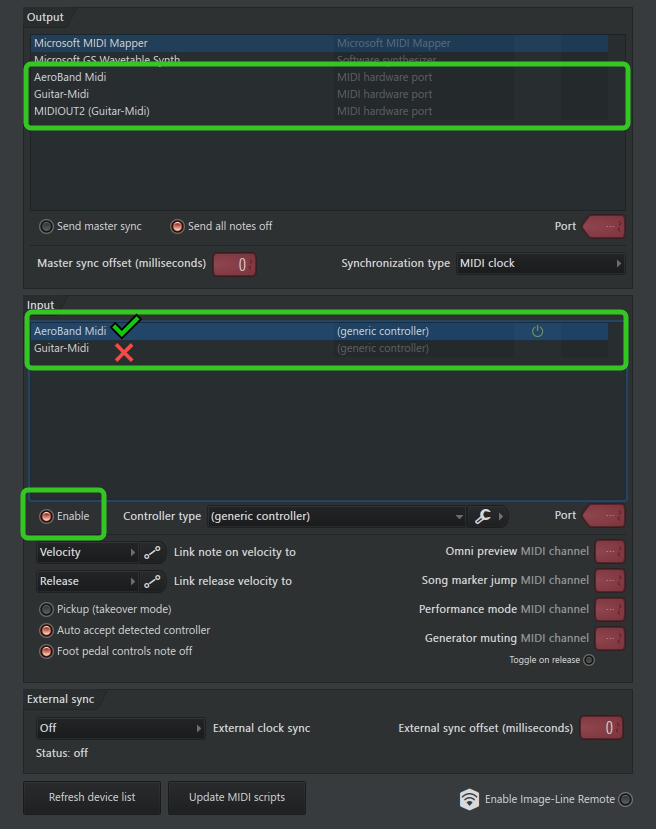

  • Ensure there are 2 MIDI inputs and 3 MIDI outputs from the AeroBand Guitar, and ensure "Guitar-Midi" remains disabled.
fl studio.png

Studio One

For Studio One or software that does not auto-detect MIDI I/O.

In Windows 11 Studio One:

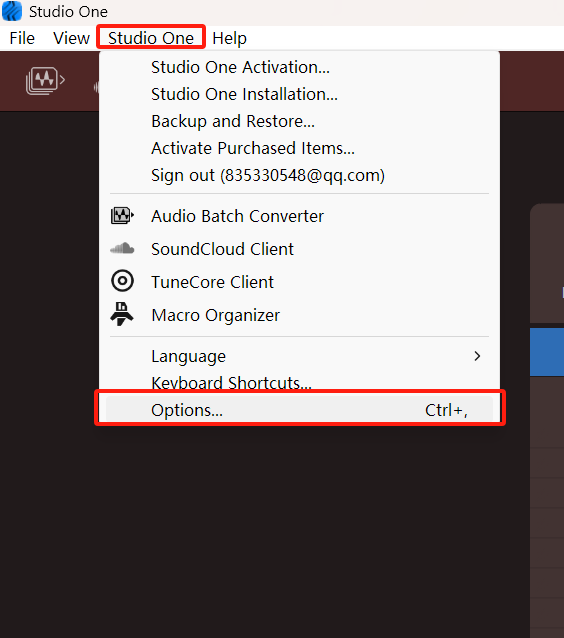

  • Connect the AeroBand Guitar and launch Studio One. Click "Studio One" > "Options".

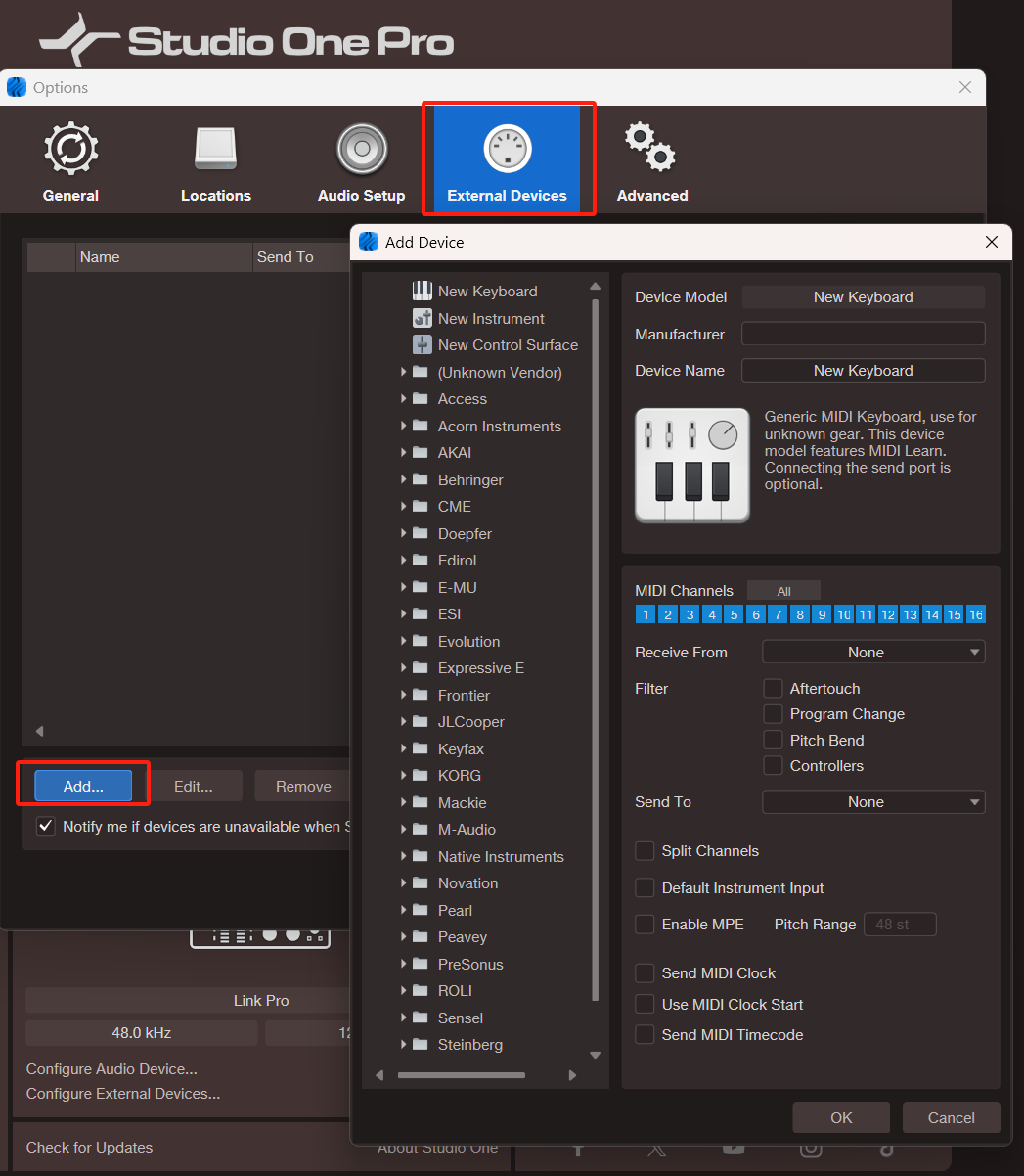

  • Select "External Devices" > "Add".

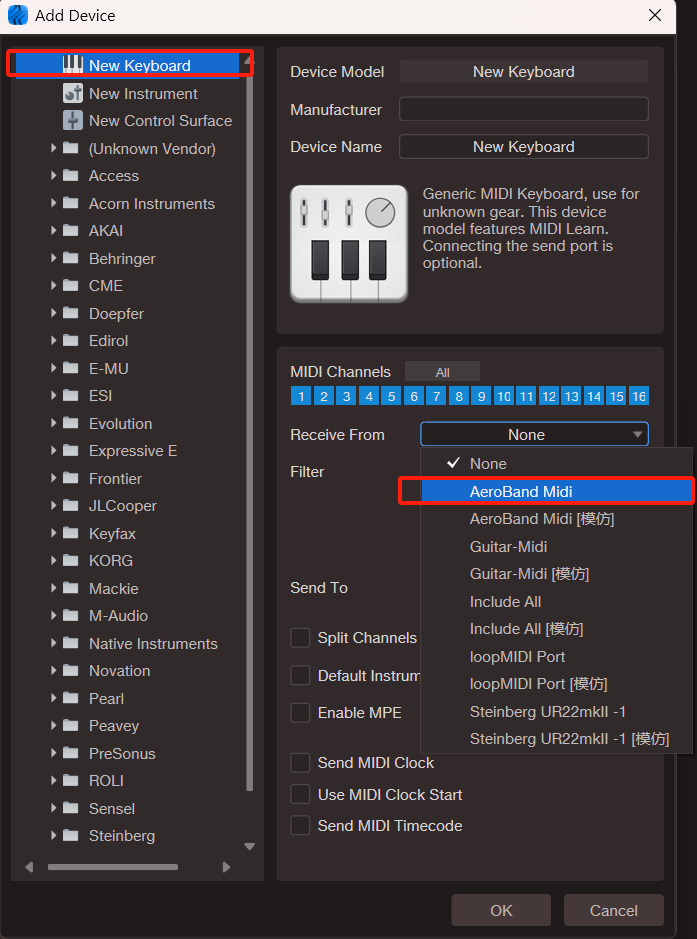

  • Select "New Keyboard" and choose "AeroBand MiDi" in the Receive list.
  • Enable "Split Channels" to activate multi-channel mode.

Note: Manual DAW configuration may be required.


Want to know more?

▶ Video guides: youtube.png

👥 Connect with other users: discord.png facebook.png reddit.png

🌐 Official social media channels: instagram.png facebook.png

For additional assistance, please refer to the included manual or contact AeroBand customer support at support@aeroband.net.
